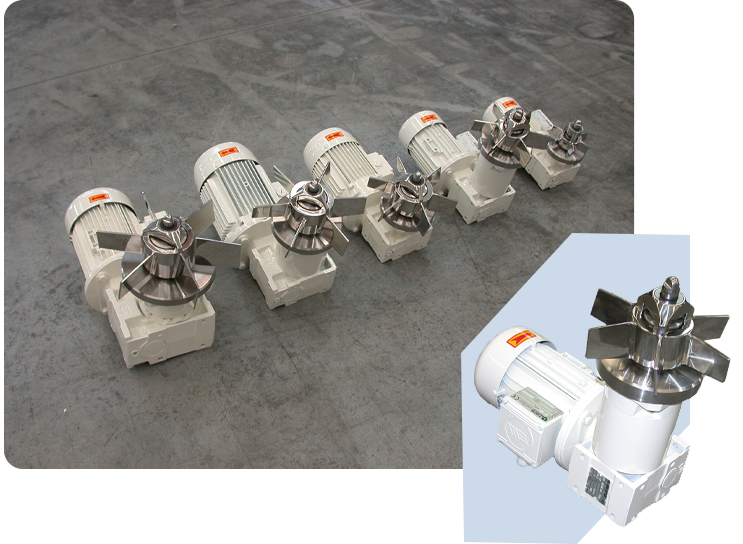

MagnaSafe Mag-Drive Bottom Entry Agitators & Mixers

Leakproof, Sealless Mixing for Pharmaceutical, Biotech & Food Applications

The MagnaSafe MSB Bottom Entering Mixer is designed for sanitary, contamination-free mixing in industries where cleanliness and safety are critical. Unlike conventional mixers, it eliminates mechanical seals, ensuring zero leakage, minimal maintenance, and uncompromised product purity.

Engineered for biotech, pharmaceutical, and food processing, this high-performance mixer meets strict regulatory standards, offering CIP/SIP sterilization, advanced impeller technology, and precision mixing capabilities for a wide range of applications.

MSB
Engineered for Performance & Cleanability

The MSB Bottom Entering Mixer is meticulously designed to meet the highest sanitary and process efficiency standards:

  • Sealless, Magnetic Drive Technology ensures 100% leakproof performance.
  • Validated Cleanability—independently tested to prevent particle shedding and contamination.
  • Optimized for Efficiency—low shear, high-flow impeller with free-draining design.
  • No Maintenance Downtime—eliminates mechanical seals and frequent part replacements.
  • CIP/SIP Sterilizable—ensuring full compliance with FDA, USDA, and USP standards.

Each application undergoes rigorous analysis to determine optimal horsepower and impeller selection, ensuring maximum efficiency and process reliability.

Bottom Entry Agitator – Technical Highlights

Designed for a range of mixing needs, the MSB Bottom Entering Mixer offers:

Material Options: 316L stainless steel with highly polished wetted parts

Motor Choices: Electric and air motors up to 5 HP

Capacity: Mixes up to 30,000 liters

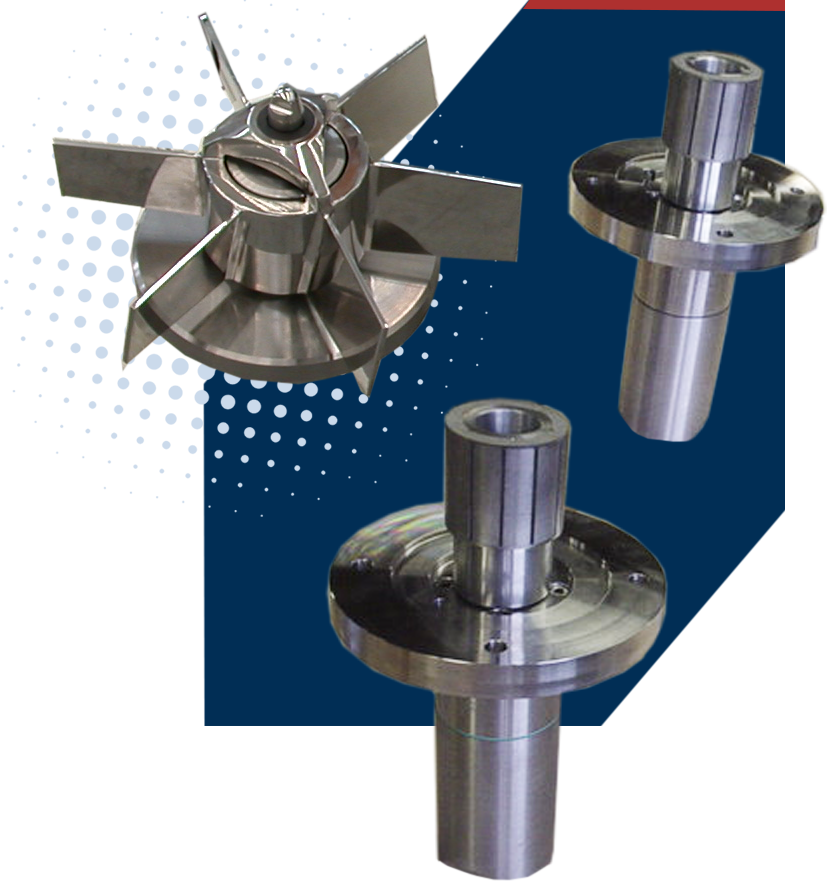

Durability: One-piece weld plate, silicon carbide and PEEK bushings

Process Control: Available with speed sensors and tachometers

Industries & Applications

The MagnaSafe MSB Bottom Entering Mixer is designed for industries that demand high-purity, precision-controlled mixing solutions in sanitary environments.

Pharmaceutical
& Biotech

For sanitary reactors and high-purity processing.

Food
& Beverage

Designed for hygienic blending and ingredient mixing.

Research
& Development

For precision-controlled mixing in laboratory environments.

Frequently Asked Questions (FAQ)
MSB

What makes the MagnaSafe MSB Bottom Entering Mixer different from other mixers?

Unlike traditional bottom-entry mixers, the MagnaSafe MSB features 100% leakproof magnetic drive technology, eliminating mechanical seals that can wear down, cause contamination, and require frequent replacement. It is also fully CIP/SIP sterilizable, making it ideal for pharmaceutical and food processing applications.

How does the magnetic drive technology work?
MagnaSafe mixers use a powerful magnetic coupling that transfers torque from the motor to the impeller without the need for a mechanical seal. This ensures zero leakage, prevents product contamination, and reduces maintenance costs.

Is the bottom entry mixer suitable for high-shear applications?

The MSB Bottom Entering Mixer is optimized for high-flow, low-shear mixing, making it ideal for applications that require gentle yet effective blending. If a high-shear option is needed, MagnaSafe offers customized impeller solutions for specialized applications.

What industries commonly use bottom entry mixers?

These mixers are most commonly used in pharmaceutical manufacturing, biotech production, and food processing, where contamination-free, leakproof mixing is essential.
What sizes are available?

The MagnaSafe MSB Bottom Entering Mixer can handle mixing volumes up to 30,000 liters, up to 5 HP, with custom-engineered solutions available for specialized needs.

Can this mixer be used in explosion-proof environments?
Yes! The MSB Bottom-Entering Mixer is available with fully explosion-proof motors and controls, making it suitable for hazardous environments requiring strict safety compliance.
Does the mixer require frequent maintenance?
No! One of the biggest advantages of MagnaSafe’s sealless design is that it eliminates mechanical seal failures, resulting in a maintenance-free mixing system that reduces downtime and operational costs.
Upgrade to a Leakproof, Maintenance-Free Mixing Solution
With zero leakage, no mechanical seals, and best-in-class cleanability, the MSB Bottom-Entering Mixer delivers the reliability and performance your process demands.
